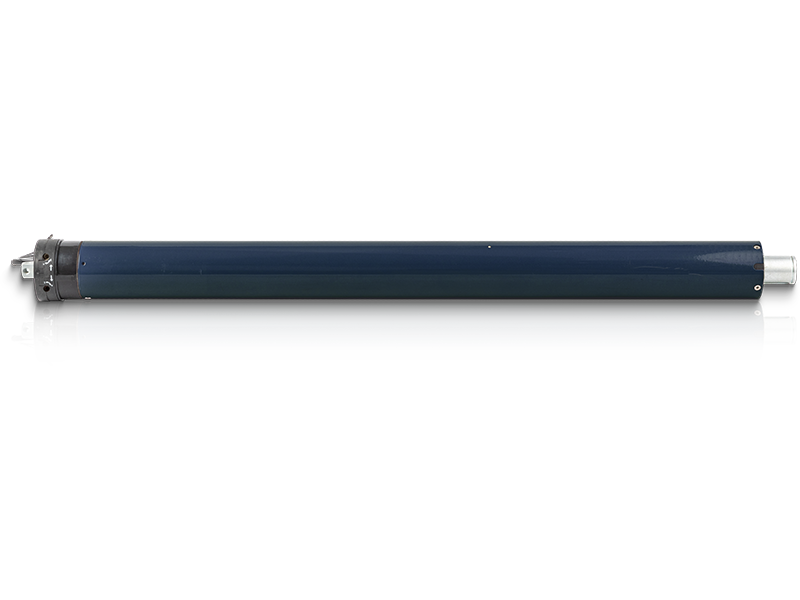

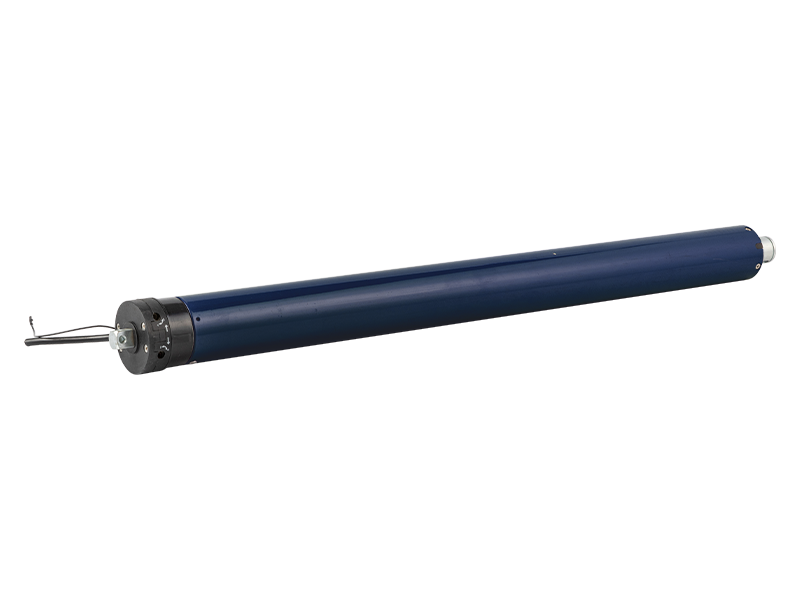

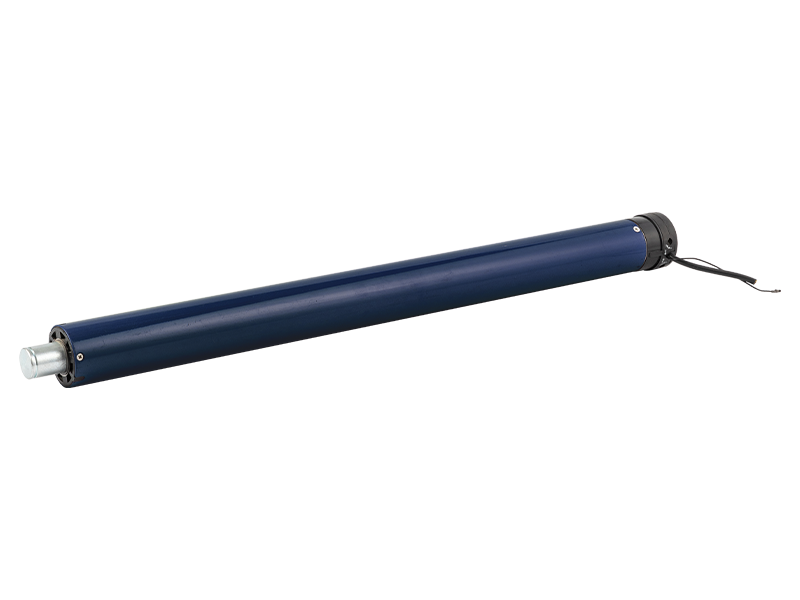

ZT59R Range - Built-in Receiver Type 59MM Tubular Motor

R: Radio

Mechanic Limit
share:
Inquiry
Download PDF

Download

Download

Download

Download
Applications

lnner Structure Picture

Dimension Drawing

ZT59R Range -Built-in Receiver Type							Product Certificate
Motor Type	Rated Torque	Rated Speed	Tube Diameter	Rated Power Input	Rated Current	Running Time	Max Number of Turns	L1/L2
	N.m	rpm	mm	w	A	min	Turn	mm
230V/50Hz - lp44
ZT59R-60/15	60	15	59	346	1.51	4	24	742/722
ZT59R-80/15	80	15	59	380	1.65	4	24	742/722
ZT59R-100/9	100	9	59	346	1.51	4	24	742/722
ZT59R-100/12	100	12	59	368	1.61	4	24	742/722
ZT59R-120/9	120	9	59	365	1.58	4	24	742/722
ZT59R-140/7	140	7	59	396	1.71	4	24	742/722
120V/60Hz - lp44
ZT59R-60/14	60	14	59	338	2.89	4	24	742/722
ZT59R-80/14	80	14	59	400	3.37	4	24	742/722
ZT59R-100/11	100	11	59	411	3.45	4	24	742/722

MENU

Ningbo Zonglan Intelligent Technology Co., Ltd.

Zonglan tubular motor and remote controller system can be widely used for Automatic Roller Blinds, Automatic Venetian Blinds, Automatic Roller Shutter, Automatic Awning, Automatic Roller Door, Automatic Clothes Pole, Automatic Projection Screen. We are professional China ZT59R Range - Built-in Receiver Type 59MM Tubular Motor suppliers and OEM ZT59R Range - Built-in Receiver Type 59MM Tubular Motor company. Our products play the role of natural lighting, heating and cooling, and natural ventilation in the construction field, and have been widely used in office buildings, shopping malls, and high-end residential quarters.
