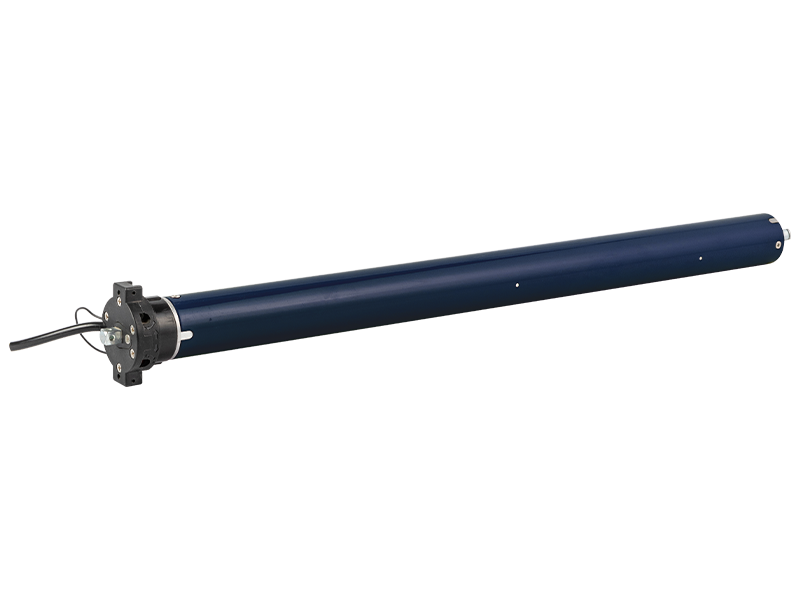

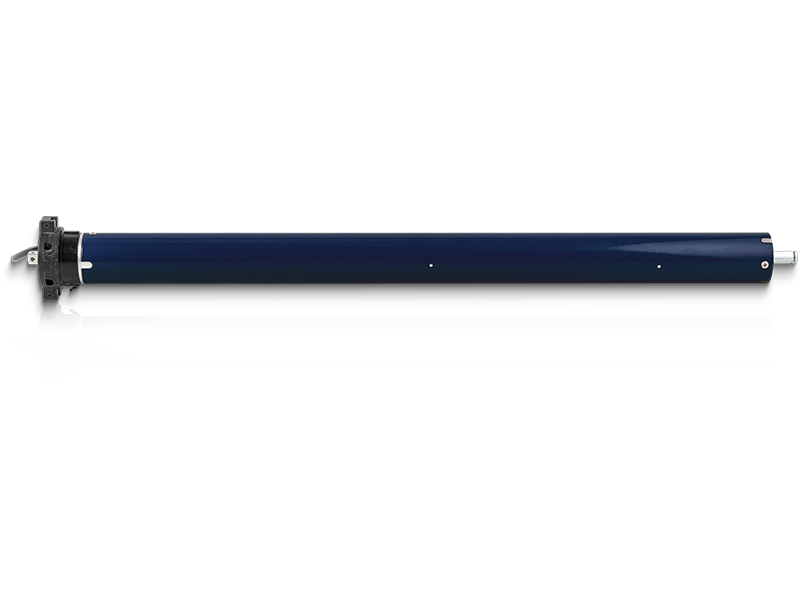

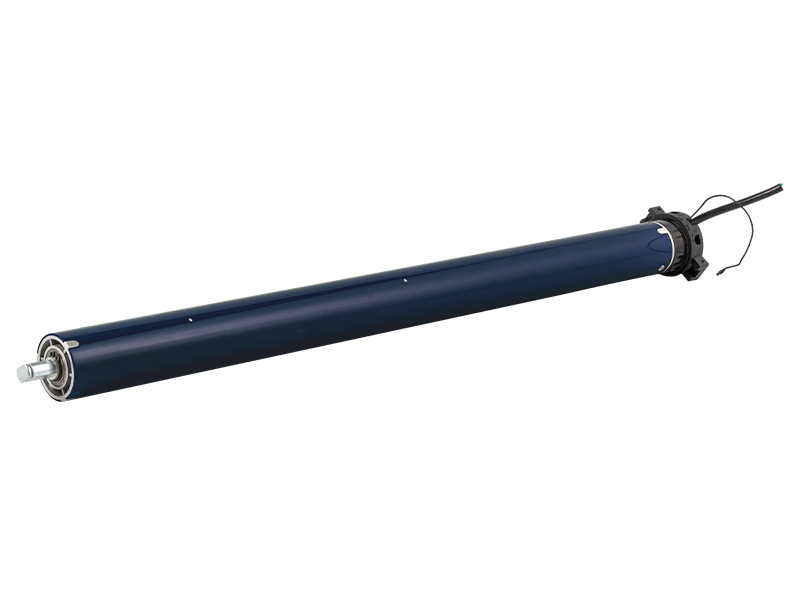

ZT45R Range - 45MM Builf-in Receiver Type Tubular Motor

R: Radio

Mechanic Limit
share:
Inquiry
Download PDF

Download

Download

Download

Download
Applications

lnner Structure Picture

Dimension Drawing

ZT45R Range -Builf-in Receiver Type							Product Certificate
Motor Type	Rated Torque	Rated Speed	Tube Diameter	Rated Power Input	Rated Current	Running Time	Max Number of Turns	L1/L2
	N.m	rpm	mm	W	A	min	Turn	mm
230V/50HZ-Ip44
ZT45R-10/15	10	15	45	125	0.54	4	22	564/548
ZT45R-10/26	10	26	45	153	0.68	4	45	564/548
ZT45R-20/15	20	15	45	153	0.68	4	22	564/548
ZT45R-20/26	20	26	45	215	0.95	4	45	634/618
ZT45R-30/15	30	15	45	205	0.93	4	22	614/598
ZT45R-40/15	40	15	45	215	0.95	4	22	634/618
ZT45R-50/12	50	12	45	230	1.02	4	22	634/618
ZT45R-60/8	60	8	45	238	1.04	4	22	634/618
120V/60HZ-Ip44
ZT45R-10/19	10	19	45	131	1.09	4	22	634/618
ZT45R-10/32	10	32	45	160	1.33	4	45	634/618
ZT45R-20/19	20	19	45	214	1.85	4	22	634/618
ZT45R-20/32	20	32	45	243	2.02	4	45	674/658
ZT45R-30/13	30	13	45	213	1.83	4	22	674/658
ZT45R-40/13	40	13	45	235	1.95	4	22	674/658
ZT45R-50/13	50	13	45	270	2.3	4	22	674/658
