Custom ZT35E Range - Electronic Radio Type 35MM Tubular Motor Suppliers, Company - Ningbo Zonglan Intelligent Technology Co., Ltd

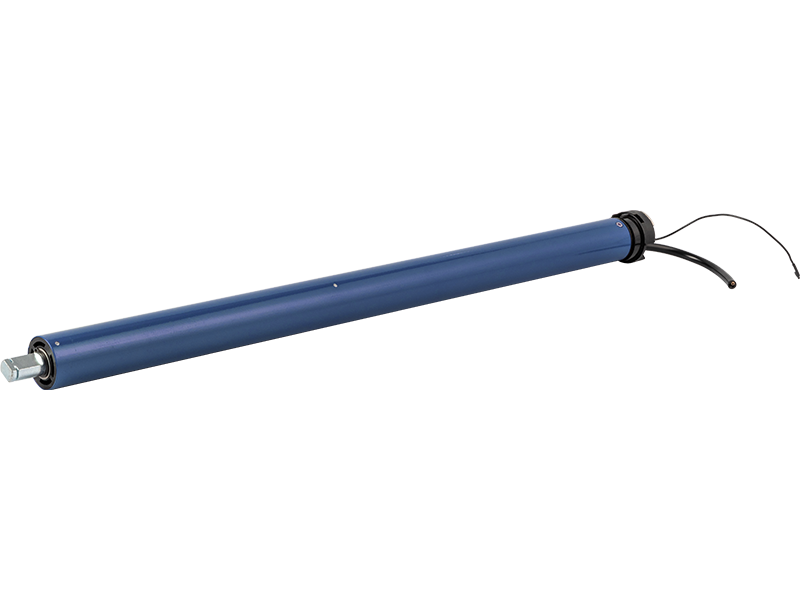

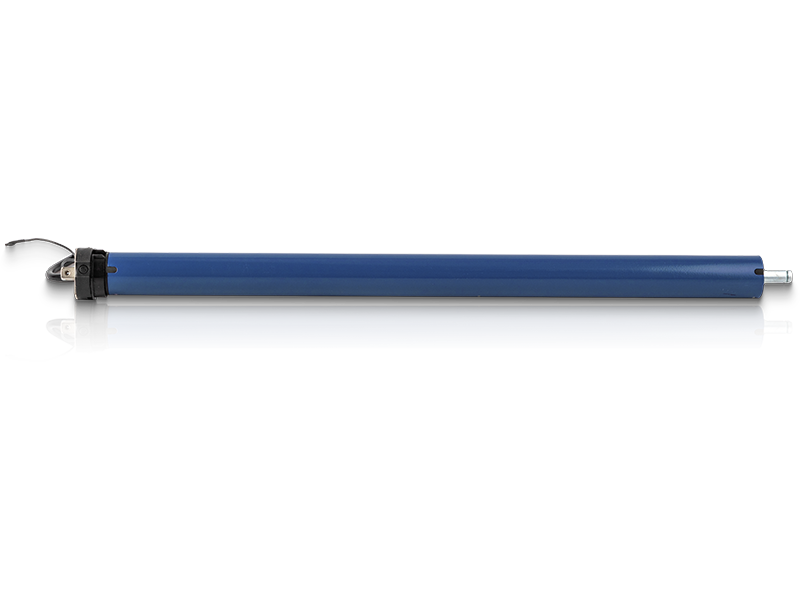

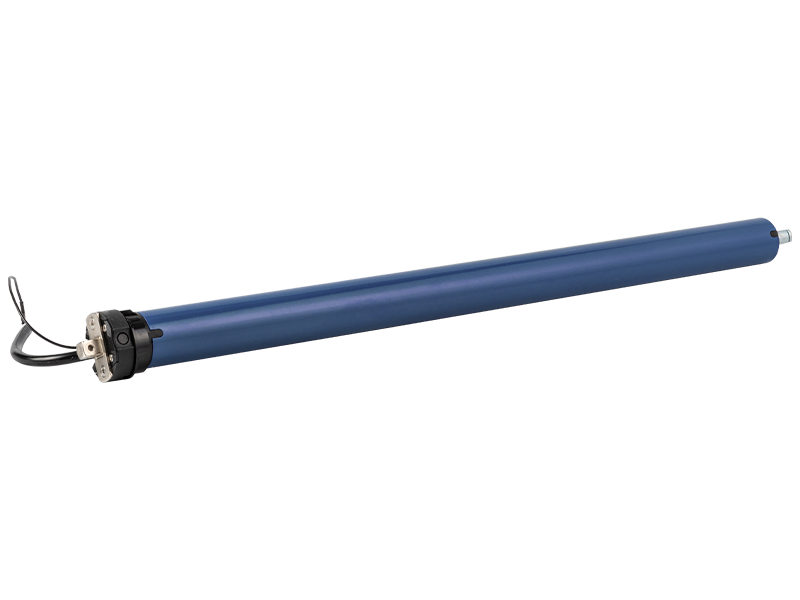

ZT35E Range - Electronic Radio Type 35MM Tubular Motor

E: Electronic Radio

Electronic Limit Built-in Wireless Receiver The Third Limit Jogging & Tilt FunctionResistance And Stop Function
share:
Inquiry
Download PDF

Download

Download

Download

Download
Applications

lnner Structure Picture

Dimension Drawing

ZT35E Range - Electronic Radio Type							Product Certificate
Motor Type	Rated Torque	Rated Speed	Tube Diameter	Rated Power Input	Rated Current	Running Time	Max Number of Turns	L1/L2
	N.m	rpm	mm	w	A	min	Turn	mm
230V/50HZ - Ip44
ZT35E-6/28	6	28	35	139	0.6	4	∞	554/541
ZT35E-10/17	10	17	35	139	0.6	4	∞	554/541
ZT35E-13/14	13	14	35	139	0.6	4	∞	554/541
120V/60HZ- Ip44
ZT35E-6/33	6	33	35	128	1.06	4	∞	554/541
ZT35E-10/21	10	21	35	128	1.06	4	∞	554/541
ZT35E-13/15	13	15	35	128	1.06	4	∞	554/541

MENU

Ningbo Zonglan Intelligent Technology Co., Ltd.

Zonglan tubular motor and remote controller system can be widely used for Automatic Roller Blinds, Automatic Venetian Blinds, Automatic Roller Shutter, Automatic Awning, Automatic Roller Door, Automatic Clothes Pole, Automatic Projection Screen. We are professional China ZT35E Range - Electronic Radio Type 35MM Tubular Motor suppliers and OEM ZT35E Range - Electronic Radio Type 35MM Tubular Motor company. Our products play the role of natural lighting, heating and cooling, and natural ventilation in the construction field, and have been widely used in office buildings, shopping malls, and high-end residential quarters.
